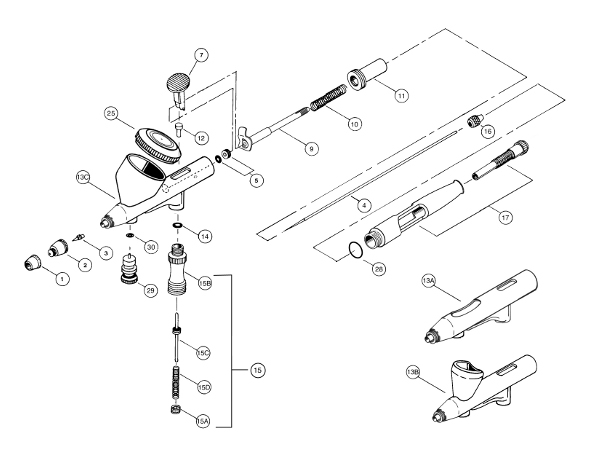

2009 Hi-Line Parts Guide

#	Item Description1	Size	Price Code	Item #	HP-AH	HP-BH	HP-CH
1	Needle Cap		B	I 110 1	S	S	O
			B	I 110 2	O	O	S
	Crown Cap		D	I 105 0	O	O	O
2	Nozzle Cap2	0.2 mm	D	I 140 7	S	S	O
		0.3 mm	D	I 140 3	O	O	S
3	Nozzle2	0.2 mm	G	I 080 7	S	S	O
		0.3 mm	G	I 080 8	O	O	S
4	Needle2	0.2 mm	C	I 075 1	S	S	O
		0.3 mm	C	I 075 3	O	O	S
5	Teflon Needle Packing Screw3	0.2 mm	B	I 125 7	S	S	O
		0.3 mm	B	I 725 1	O	O	S
7	Trigger		D	I 100 2	S	S	S
9	Needle Chucking Guide w/Auxiliary Lever	0.2 mm	C	I 115 7	S	S	O
		0.3 mm	C	I 715 1	O	O	S
10	Needle Spring5		A	I 135 2	S	S	O
			A	I 135 1	O	O	S
11	Spring Guide		C	I 170 6	S	S	X
			C	I 770 1	X	X	S
12	Valve Piston		A	I 175 1	S	S	S
13A	Body6		N/A		S	X	X
13B			N/A		X	S	X
13C			N/A		X	X	S
14	Air Piston O-Ring		A	I 145 1	S	S	S
15	Air Valve Set7		G	I 030 1	S	S
			G	I 030 4			S
15A	Air Valve Guide8		A	I 025 1	S	S	S
15B	Air Valve Body		D	I 020 1	S	S	S
15C	Air Valve		B	I 015 1	S	S
			B	I 015 4			S
15D	Air Valve Spring		A	I 035 1	S	S	S
16	Needle Chucking Nut		A	I 120 1	S	S	S
17	Cut-Away, Pre-Set Handle		G	I 155 6	S	S	S
25	Color Cup Lid9		C	I 618 1	X	X	S
28	Handle O-Ring		A	I 605 1	S	S	S
29	Micro Air Control Valve		D	I 190 1	S	S	S
30	MAC Valve O-Ring		A	I 190 2	S	S	S
	Spanner (The Iwata Wrench)10		A	I 165 1	S	S	S

• Iwata Price Codes for 2009
• Iwata Bottles for Siphon and Side Feed Airbrushes

Note: If you see or experience any errors with this guide please contact me so I can correct the mistake.  Thanks!

Technician's Notes

1. Item Descriptions


   I'm not into big long descriptions so the name Iwata calls some parts and what I call those parts aren't always the same.  I stopped calling the same part different names based soley on which model the airbrush happens to be.  I realize this could make my parts guide annoying.  For the annoyance, I apologize.

2. Changing Tip Size


   Always change out the needle, nozzle, nozzle cap, the needle packing set, and possibly the needle chucking guide for best performance.

3. Teflon Needle Packing Set


   Replaces both the Needle Packing O-Ring and the Needle Packing Screw found on the original High Performance series.  Teflon is solvent proof, however it doesn't compress as well, so it will feel different than the standard o-rings.  (I actually like the old o-rings better!)

4. Non-Teflon Needle Packing Set


   For those of you who still like the old o-rings better, you'll need to consult the High Performance Parts Guide.  Stick with the same model (A to AH, B to BH, etc.)  and everything should be fine.  Do remember if you want to go back you'll need both the o-ring and the screw to start but the o-ring is the only part that wears out at all.

5. Two Needle Springs?


   Another strange anomaly from Japan.  As far as I can tell both parts look and behave the same, but they're listed as seperate parts.

6. Iwata doesn't sell airbrush bodies


   Bodies aren't for sale for one very pertinent reason.  They're too expensive.  They cost a little less than buying a new airbrush.  I've included part numbers and price codes so you can see for yourself...but seriously, don't bother ordering them.

7. Air Valve Sets


   If you're having problems with the air valve and just can't figure out what's happening, try replacing the whole set instead of getting in too deep.  Of course, I don't think it's actually hard to troubleshoot the various parts.

8. Air Valve Guide


   It's really just a screw.  A pair of tweezers will let you get in there to screw or unscrew this part from the airbrush body.

9. The Lid for the HP-C+


   It's a standard Iwata 1/3 oz fluid cup lid completely compatible and interchangeable with lids from other Iwata C-style airbrushes.

10. The Iwata Wrench


    If you lose your wrench, no worries.  A crescent wrench will take it's place easily enough.  Just don't screw the Head Cap on too tight...

    I have also discovered that Iwata will replace it free of charge should you happen to lose yours.
